Introduction:

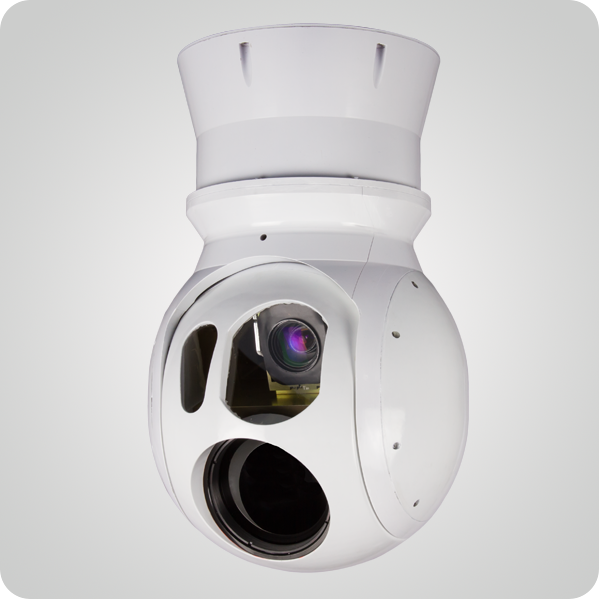

VK230W is integrated with multiple sensors and laser rangefinders, combined with the handle, electronic box and the displayer. The whole system is capable of omnidirectional image figuring, which is suitable for the aircrafts, ships and other platforms with strict weight requirements, it is also applicable to various kinds of photoelectric stabilizing tracking systems.

VK230W is designed with fruity surface, smooth lines, the structure is symmetric with sense of beauty. The stabilized turret is based on the principle of closed loop control for rate stability，using high speed digital signal processing，with high precision, high reliability component parts and advanced design concept combined with high quality processing means.

System Features:

◆ With a 2-axis gyro stabilized turret, the system can obtain stable images

◆ Multiple sensors are optional to be integrated in the system for images

◆ The shell is molded with carbon fiber, which provides advantages like light in weight, at the same time high in strength and corrosion resistance

◆ The camera enclosed is fully waterproof, dust proof and serious corrosion proof

◆ Standard Image, Communication Interfaces（CAN/RS422）

Platforms：

◆ UAVs

◆ Helicopters

◆ Fixed-wing planes

◆ Ships

◆ Special vehicles

Application Fields：

◆ Aerial shooting and aerial survey

◆ Environmental inspection

◆ Accurate locating and rescuing

System Specifications：

◆ Gimbal Performance：

           2-axis gyro-stabilization

           Azimuth:360°continuous

◆ Elevation：30°to -120°from horizontal

◆ Gimbal slew rate：0-90°／second

◆ Max angular acceleration：100°／S²

◆ Interface：CAN/RS422

◆ Stability Precision:≤100urad（1σ）

◆ Electrical: VIN: 18V～32V DC

◆ Consumption:

           Constant ≤80W

           Instantaneous peak≤200W

◆ Dimensions：≤Φ229mm×372.5mm（h）

◆ Gimbal width: 229mm(9 inches)

◆ Gimbal height: 372.5mm(14.67 inches)

◆ Weight: Platform: 10.8kg(23.8lbs)

◆ Laptop control unit: 2kg(4.41lbs)

◆ Electronic box: 5.5kg(12.14lbs)

◆ Operating temperature：－40℃ to +70℃(-40℉ to +158℉)

◆ Storage temperature: －55℃ to +85℃(-67℉ to +185℉)

◆ Relative humidity：≤95%（at 25℃）

Camera/Lens Payload Options：

◆ Daylight Camera(CCD):

        Sensor type：1/4 CCD

        Focal length：3.4mm～122.4mm, continuous zooming

        Field of View：1.7º～57.8°

◆ Infrared thermal imager(IR)：

        Detection Unit: 640×512 17μm

        Focal length：20mm～100mm, continuous zooming, F1.0

        Field of View：5.0°～30.4°
